Ceramic Sheet High Wear Resistant Liners Al203 Alumina Ceramic Pipe Liners
Hex mosaic sheet:
12*3mm,12*6mm,12*12mm,12*20mm
Square mosaic sheet:
10*10*2mm,10*10*3mm,10*10*4mm,10*10*8mm,17.5*17.5*3-10mm,20*20*4mm,20*20*5mm,20*20*6mm,20*20*8mm,20*20*3-10mm

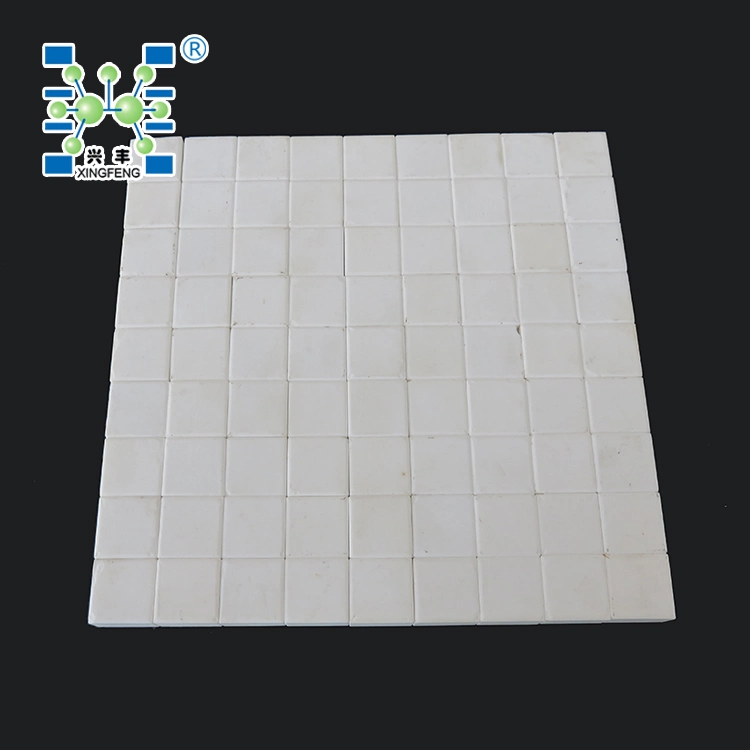

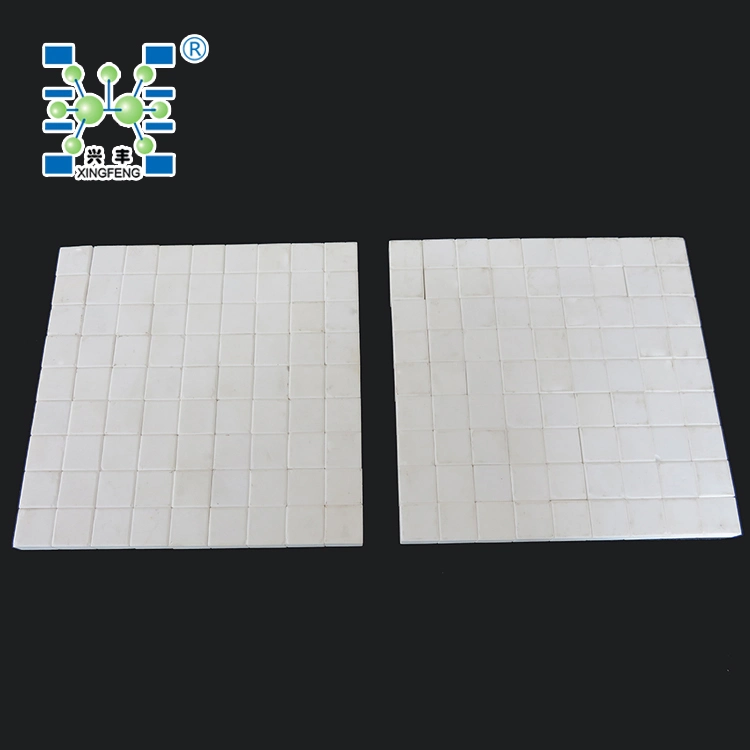

Ceramic mosaic sheet
150*150mm,300*300mm,500*500mm
Technical Data
Application:widely used in mining industry,coal industry,steel industry,conveying system and so on .It can effectively protect industry equipment from abrasion damange,and reduce the maintenance cost and down-time,standard alumina tiles including: ceramic plain plate ,alumina welded tile, taper tile liner,trapezoidal tile,curved tile ect .which are easily fixed and installed by end users .
Characteristics:
High hardness
Rockwell hardness is HRA80-90,next to diamond,higher than to wear resistant steel and stainless steel
Good abrasive & wear resistance
Equal to 266 times for manganese steel and 171.5 times for high cast iron.
The life span is more than 10times under same
Light weight
Density is 3.6g/cm3,half of steel,lower the load for device
Strong bonding & high temperature resistance
At 350°C run for a long time and will not ageing.Max temperature for inorganic binder is 750°C.The indicators for bonding and temperature resistance is ahead in China.
Package:cartons
Ceramic liner also called high alumina liner,wear resistance ceramic lining,ceramic sheet,alumina liner,alumina ceramic mosaic sheet,ceramic lining
DimensionsHex mosaic sheet:
12*3mm,12*6mm,12*12mm,12*20mm
Square mosaic sheet:
10*10*2mm,10*10*3mm,10*10*4mm,10*10*8mm,17.5*17.5*3-10mm,20*20*4mm,20*20*5mm,20*20*6mm,20*20*8mm,20*20*3-10mm
Ceramic mosaic sheet
150*150mm,300*300mm,500*500mm
Technical Data
| Item | Unit | Value |
| Alumina content | % | 92%, 95% |
| Density | g/cm3 | ≥3.62 |
| Moh's scale (Vickers hardness) | g/mm2 | ≥9.0(918) |
| Crush strenght | 20°C Mpa | ≥1.77 |
| Bending strength | 20°C Mpa | 275 |
| Max operation Temp. | °C | 1250 |
Application:widely used in mining industry,coal industry,steel industry,conveying system and so on .It can effectively protect industry equipment from abrasion damange,and reduce the maintenance cost and down-time,standard alumina tiles including: ceramic plain plate ,alumina welded tile, taper tile liner,trapezoidal tile,curved tile ect .which are easily fixed and installed by end users .
Characteristics:
High hardness
Rockwell hardness is HRA80-90,next to diamond,higher than to wear resistant steel and stainless steel
Good abrasive & wear resistance
Equal to 266 times for manganese steel and 171.5 times for high cast iron.
The life span is more than 10times under same
Light weight
Density is 3.6g/cm3,half of steel,lower the load for device
Strong bonding & high temperature resistance
At 350°C run for a long time and will not ageing.Max temperature for inorganic binder is 750°C.The indicators for bonding and temperature resistance is ahead in China.
Package:cartons
