Material
This Bi-metallic wear resistant product, as a combination of high Chromium cast iron (ASTM A532 15/3CrMo, 700BHN - 63HRc) metallurgically bonded to a mild steel backing plate, obtains both very high abrasion resistance and weldability.
Chemical Composition of White Iron
Mechanical Property of White Iron
1. Tensile Strength: 630 MPa
2. Shearing Strength: 250 MPa
3. Hardness: 63 HRC
Micro-Structure of White Iron
Product Series
Chocky Bars Wear Buttons Wear Donuts
Standard Wear Bars Micro-Ledges Wear Plates
Rock Box Liners Skid Wear Bars Shaped Wear Bars
Wafer Strips Grizzly Bars Elbow Wear Bars
Shredder Hammer Tips Knife Edges Overlay Wear Plates
Applications
Wear Pads Jaw Crushers Chute Linings Ore Chutes
Crusher Chutes Tripper Chutes Flop Gates Bucket Liners
Grizzly Bars Lip Protectors Screen Plates Vibratory Feeders
Floor Liners Loaders Wear Aprons Knife Inserts
Crusher Bars Run Out Rolls Dump Hoppers Crusher Hoppers

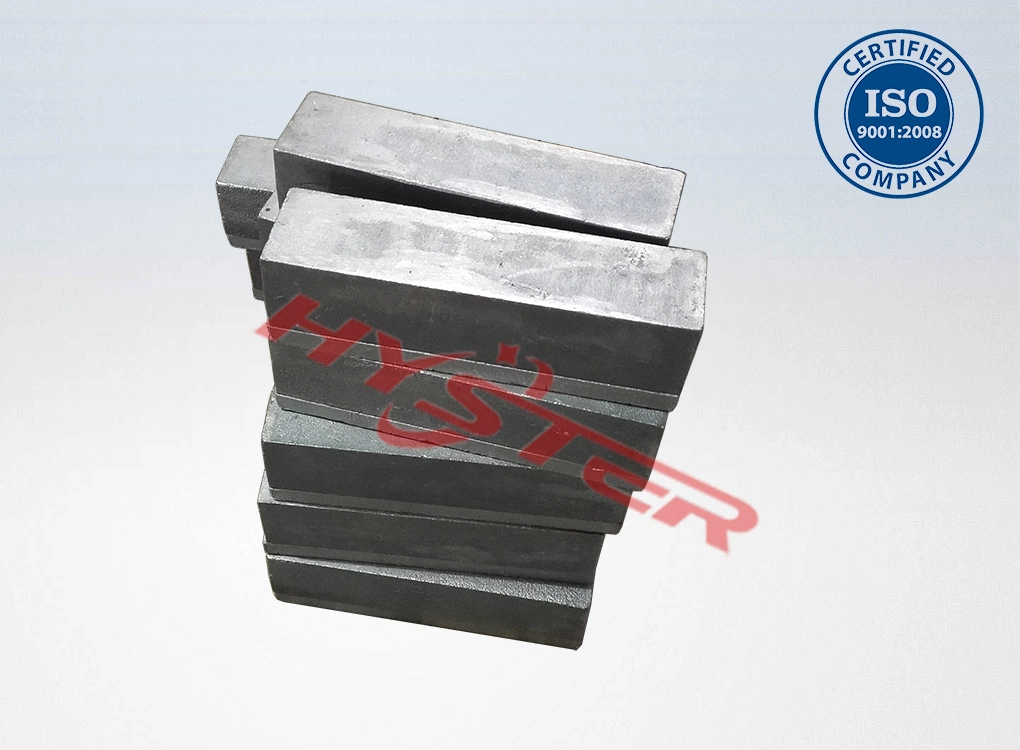

Specifications of Standard Wear Bars
Hunan Hyster Material Technology Co., LTD.
Founded in 1995, Hyster is a professional manufacturer & exporter of Bi-metallic Wear Blocks & Plates, Wear Pipes, Chocky Bars, Wear Buttons (white iron vacuum brazed onto mild steel, 63HRC/700BHN), Chromium Carbide Overlay Wear Plates, Ni-Hard Castings/Plates, Tungsten Carbide Castings for Mining, Quarrying, and other heavy industries.
This Bi-metallic wear resistant product, as a combination of high Chromium cast iron (ASTM A532 15/3CrMo, 700BHN - 63HRc) metallurgically bonded to a mild steel backing plate, obtains both very high abrasion resistance and weldability.
Chemical Composition of White Iron
| C | Cr | Mn | Mo | Cu | P | Si | S | B,V,Nb |
| 2.5~3.5% | 15~18% | 0.5~1.0% | 0.5~2.5% | 0.5~1.0% | ≤0.02% | 0.5~1.0% | ≤0.02% | 0.1~0.5% |
Mechanical Property of White Iron
2. Shearing Strength: 250 MPa
3. Hardness: 63 HRC
Micro-Structure of White Iron
Product Series
Chocky Bars Wear Buttons Wear Donuts
Standard Wear Bars Micro-Ledges Wear Plates
Rock Box Liners Skid Wear Bars Shaped Wear Bars
Wafer Strips Grizzly Bars Elbow Wear Bars
Shredder Hammer Tips Knife Edges Overlay Wear Plates
Applications
Wear Pads Jaw Crushers Chute Linings Ore Chutes
Crusher Chutes Tripper Chutes Flop Gates Bucket Liners
Grizzly Bars Lip Protectors Screen Plates Vibratory Feeders
Floor Liners Loaders Wear Aprons Knife Inserts
Crusher Bars Run Out Rolls Dump Hoppers Crusher Hoppers
Specifications of Standard Wear Bars
-Better wear resistance performance
-Durable
-Cost effective
-Excellent quality
Notes: Arc studs available as per sizes or drawings provided.| Item No. | Size (mm) | Dimension (mm) | N.W. (kg) | ||||
| A | B | C | D | E | |||
| HSd 200A | 200×25×25 | 200 | 25 | 15 | 10 | 25 | 1.0 |
| HSd 200B | 200×75×75 | 200 | 75 | 63 | 12 | 75 | 8.9 |
| HSd 300A | 300×25×25 | 300 | 25 | 15 | 10 | 25 | 1.5 |
| HSd 153 | 153×38×33 | 153 | 38 | 25 | 8 | 33 | 1.5 |
| HSd 300B | 300×38×33 | 300 | 38 | 25 | 8 | 33 | 3.0 |
| HSd 203 | 203×50×20 | 203 | 50 | 12 | 8 | 20 | 1.6 |
| HSd 254 | 254×50×20 | 254 | 50 | 12 | 8 | 20 | 2.0 |
| HSd 190A | 190×50×30 | 190 | 50 | 20 | 10 | 30 | 2.2 |
| HSd 65 | 65×50×50 | 65 | 50 | 38 | 12 | 50 | 1.3 |
| HSd 115 | 115×50×50 | 115 | 50 | 38 | 12 | 50 | 2.3 |
| HSd 127 | 127×50×50 | 127 | 50 | 38 | 12 | 50 | 2.4 |
| HSd 150A | 150×50×50 | 150 | 50 | 40 | 10 | 50 | 2.9 |
| HSd 190B | 190×50×50 | 190 | 50 | 40 | 10 | 50 | 3.7 |
| HSd 210 | 210×50×50 | 210 | 50 | 38 | 12 | 50 | 4.1 |
| HSd 230 | 230×50×50 | 230 | 50 | 38 | 12 | 50 | 4.5 |
| HSd 294 | 294×50×50 | 294 | 50 | 40 | 10 | 50 | 5.8 |
| HSd 300C | 300×50×50 | 300 | 50 | 40 | 10 | 50 | 5.9 |
| HSd 300D | 300×150×60 | 300 | 150 | 48 | 12 | 60 | 21.1 |
| HSd 432 | 432×50×50 | 432 | 50 | 38 | 12 | 50 | 8.5 |
| HSd 459 | 459×38×31 | 459 | 38 | 25 | 6 | 31 | 4.2 |
| HSd 600 | 600×50×50 | 600 | 50 | 38 | 12 | 50 | 11.8 |
| HSd 250 | 250×60×20 | 250 | 60 | 12 | 8 | 20 | 2.4 |
| HSd 150B | 150×75×39 | 150 | 75 | 29 | 10 | 39 | 3.4 |
| HSd 150C | 150×75×50 | 150 | 75 | 10 | 10 | 50 | 4.4 |
| HSd 150D | 150×75×60 | 150 | 75 | 50 | 10 | 60 | 5.3 |
| HSd 241 | 241×100×58 | 241 | 100 | 38 | 20 | 58 | 11.0 |
