Introduction

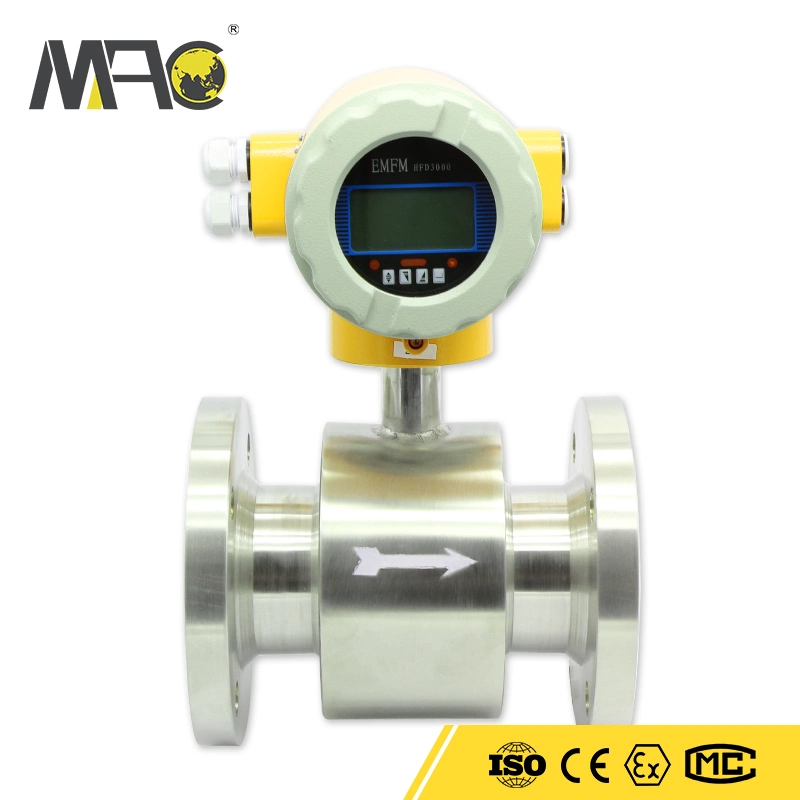

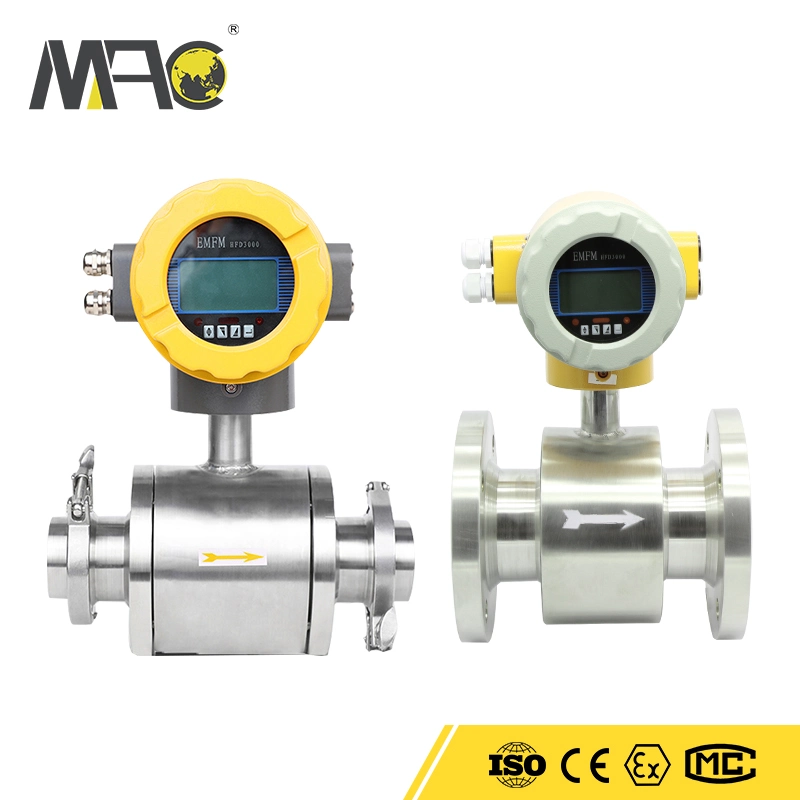

LD series of intelligent wireless electromagnetic flow meter is powered by an internal battery. It is suitable for situations where the field grid cannot be reached and the grid is difficult to lay. It is especially suitable for the monitoring, calculation and settlement of the tap water supply system. The electromagnetic water meter has GPRS and CDMA wireless data transmission functions;it has RS485modbus protocol (external power supply or battery power supply) communication function to realize remote data collection and management. and can be used in wet places such as underground.
| Applicable scenarios | areas that cannot be reached by the field grid, suitable for tap water supply systems |
| Caliber range | DN3-DN300 |
| Lining type | polychloroprene rubber, PTFE; |
| Electrode type | 316L, Hastelloy B, Hastelloy C, titanium, tantalum, platinum-iridium alloy, stainless steel tungsten carbide |
| Pressure range | 0.6-4.0Mpa; |
| Temperature resistance | -25~80ºC; |
| Accuracy | ±0.5%1.5% |
| Protection level | IP68 |
| Output type | pulse (for supporting external power supply), 4-20mA (only supporting external power supply), RS485 interface, GPRS wireless remote transmission (full Netcom SIM card) |
| Power supply | 3.6V battery power supply |
| Sensor material | carbon steel, 304 (customized), 316 (customized) |
| Structure form | integrated type, split type |
Remarks, Medium must be Electrical conductivity, Water 20μS/cm other medium 5μS/cm,
You will benefit from Macsensor magnetic flow meter?
- Saving money
- Saving labor
- Saving time
How to choose a suitable wireless flow meter ?
