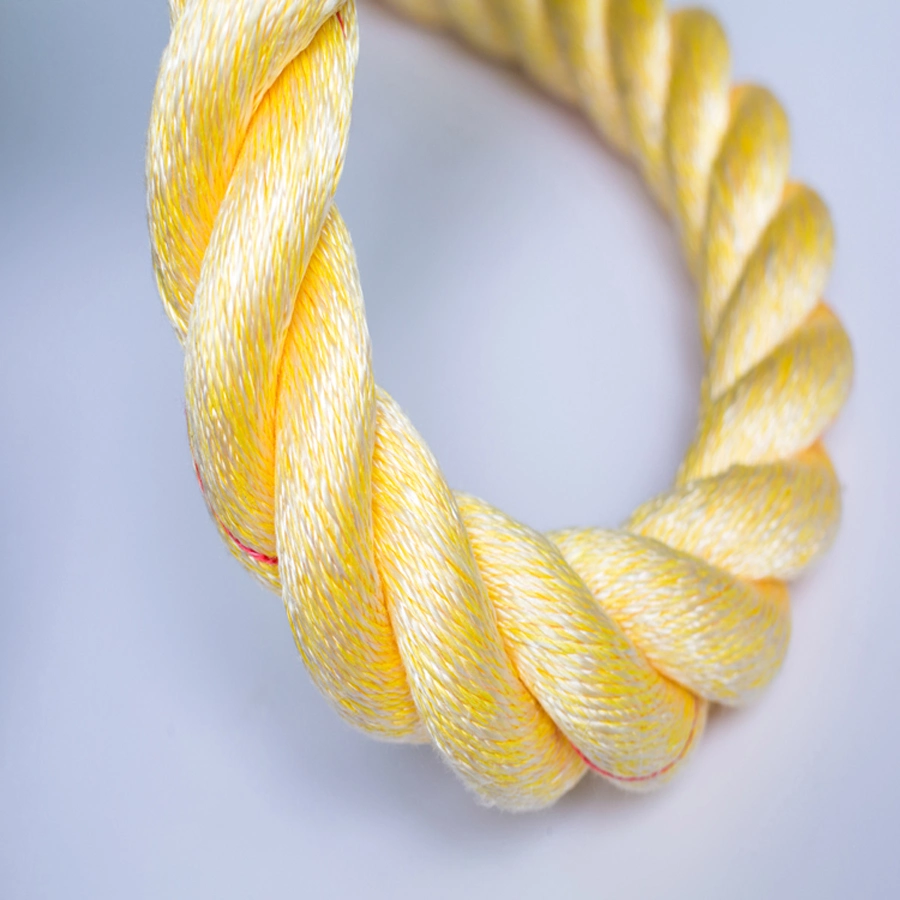

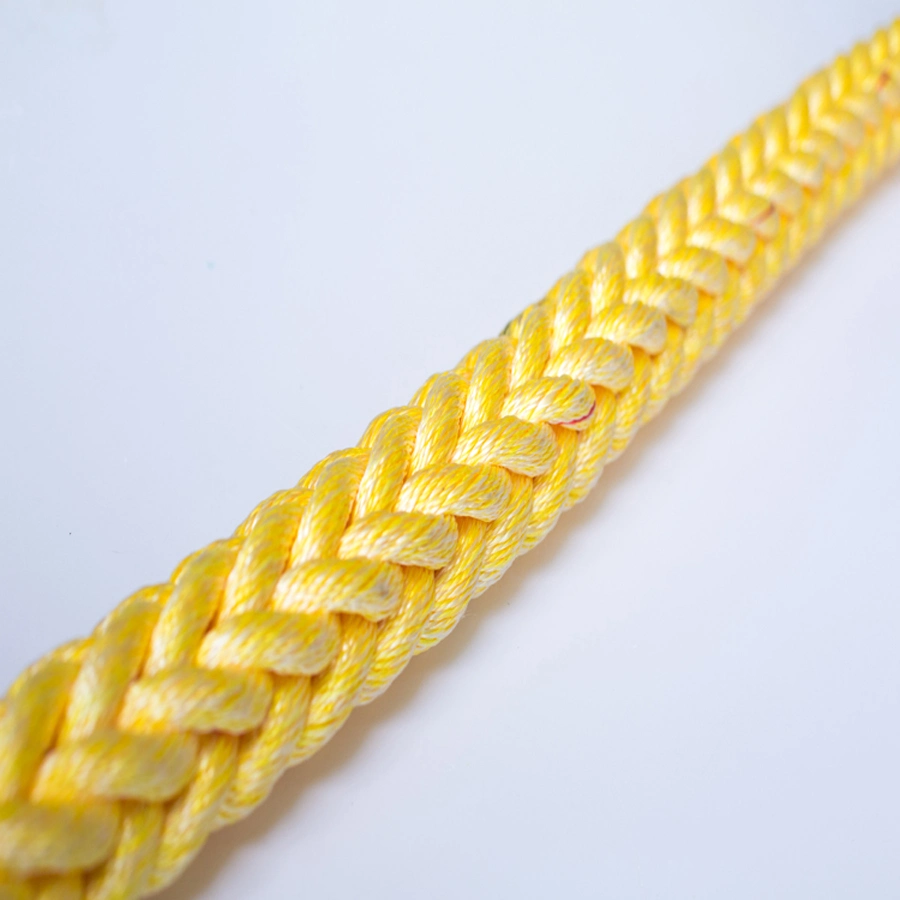

Polypropylene & POLYESTER MIXED ROPE
Details introduction
This product is made of high-strength polyester fiber (polyester) and super-high strength polypropylene fiber mixed weaving using Japanese technology, the cable is also known as "floating nylon", high resistance to wear, soft skin feel is good, the intensity is high, service life is strong.
Density: 0.97 g/cm3(floating in the water)
Melting point: 168°C/260°C
Anti-UV: Good
Resistance to wear:Very Good
Chemical resistance:Very Good
Application: Ocean-Going Ships, Port Towing, Large Container Ship, VLCC,LNG, Fishing, etc.
8 Strand and 12 Strand Parameter Table
Company Introduction
1960S
The company was founded, and the products were mainly hand-woven rope.
1980S
The purchase of a rope machine, began in the age of mechanization.
2000S
The company has passed ISO9001 system certification, CCS,LR and other classification society's factory approval and product inspection.
2005S
The company buys 30000 m2 land, builds standardized workshop and office building.
2010S
The company has participated in the drafting of several national standards, such as ultra-high molecular polyethylene, polyester and acrylic, etc.
2012S
Cooperation and development agreement with the east China sea fisheries research institute of China fishery research institute.
2017S
The annual output of the company is 6000 tons and the annual output value is 8000W, and the annual output is increasing.
Certificates
Packing
Workshop picture
Details introduction
This product is made of high-strength polyester fiber (polyester) and super-high strength polypropylene fiber mixed weaving using Japanese technology, the cable is also known as "floating nylon", high resistance to wear, soft skin feel is good, the intensity is high, service life is strong.
Density: 0.97 g/cm3(floating in the water)
Melting point: 168°C/260°C
Anti-UV: Good
Resistance to wear:Very Good
Chemical resistance:Very Good
Application: Ocean-Going Ships, Port Towing, Large Container Ship, VLCC,LNG, Fishing, etc.
8 Strand and 12 Strand Parameter Table
| mm Dia | Circ | Weight | Breaking Strength | |||
| mm | Inch | Inch | KGS/100M | LBS/100FT | Ton | kN |
| 20 | 13/16 | 2-3/4 | 23.5 | 15.8 | 8.5 | 84.3 |
| 24 | 15/16 | 3 | 33.5 | 22.5 | 12.5 | 122.6 |
| 28 | 1-1/8 | 3-1/2 | 46.5 | 31.3 | 16.6 | 162.6 |
| 32 | 1-1/4 | 4 | 59.5 | 40.0 | 21.3 | 208.7 |
| 36 | 1-7/16 | 4-1/2 | 74.2 | 49.9 | 26.5 | 259.7 |
| 40 | 1-19/32 | 5 | 91.5 | 61.5 | 32.0 | 313.6 |
| 44 | 1-3/4 | 5-1/2 | 109.0 | 73.2 | 37.8 | 370.4 |
| 48 | 1-7/8 | 6 | 132.0 | 88.7 | 44.0 | 431.2 |
| 52 | 2-1/16 | 6-1/2 | 150.0 | 100.8 | 51.3 | 502.8 |
| 56 | 2-1/4 | 7 | 179.0 | 120.3 | 59.0 | 578.2 |
| 60 | 2-3/8 | 7-1/2 | 200.0 | 122.2 | 67.0 | 656.6 |
| 64 | 2-1/2 | 8 | 226.0 | 151.9 | 74.9 | 734.0 |
| 68 | 2-11/16 | 8-1/2 | 254.0 | 170.7 | 84.0 | 823.2 |
| 72 | 2-7/8 | 9 | 284.0 | 190.8 | 93.6 | 917.3 |
| 80 | 3-5/32 | 10 | 349.0 | 234.5 | 114.2 | 1119.2 |
| 88 | 3-7/16 | 11 | 420.0 | 282.2 | 138.0 | 1352.4 |
| 90 | 3-9/16 | 11-1/8 | 439.0 | 295.0 | 144.1 | 1412.2 |
| 95 | 3-3/4 | 11-3/4 | 490.0 | 329.3 | 160.8 | 1575.8 |
| 96 | 3-13/16 | 12 | 500.0 | 336.0 | 163.2 | 1599.4 |
| 100 | 3-15/16 | 12-3/8 | 539.0 | 362.2 | 177.1 | 1735.5 |
| 104 | 4-1/8 | 13 | 586.0 | 393.8 | 192.3 | 1884.5 |
| 112 | 4-7/16 | 14 | 674.0 | 452.9 | 221.0 | 2165.8 |
| 120 | 4-3/4 | 15 | 774.0 | 520.1 | 253.2 | 2481.3 |
